Designed for both commercial and residential projects, Mapei says its Mapeheat underfloor heating system combines fast installation with energy-efficient performance. Featuring a slim, waterproof profile, it is suitable for new-build, renovation and refurbishment applications. Compatible with a range of floor finishes, including tiles and natural stone, wood and LVT, Mapei says Mapeheat offers a versatile solution for modern flooring installations.

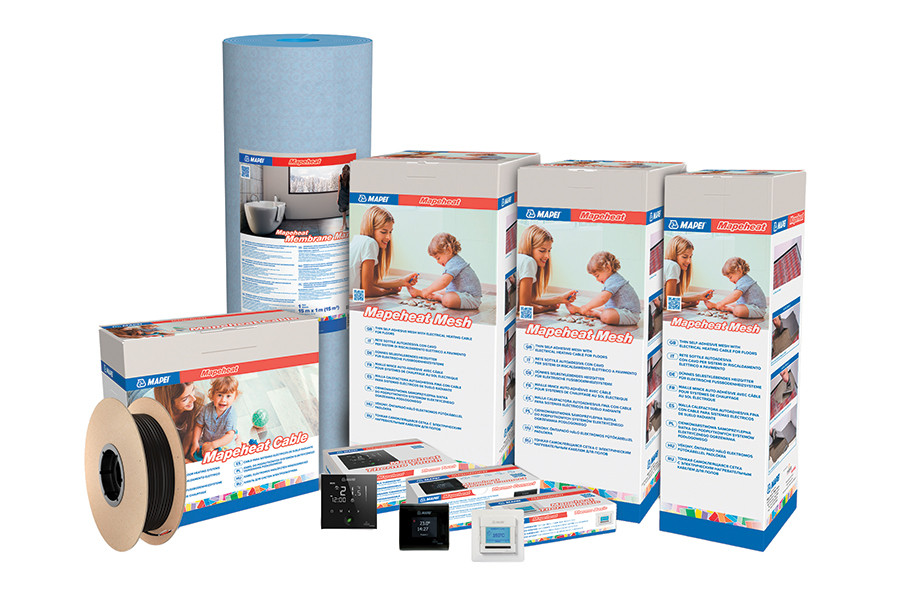

The Mapeheat system includes three components: Mapeheat Membrane Maxi, Mapeheat Cable and Mapeheat Mesh, used in conjunction with three thermostat options: Mapeheat Thermo Basic, Mapeheat Thermo Touch and Mapeheat Thermo Connect.
Mapeheat Membrane Maxi is described as a lightweight, uncoupling, crack-isolation and waterproofing membrane. Suitable for heating cables ranging from 2mm to 5.5mm, its thin profile helps prevent the transmission of in-plane substrate cracks up to 3mm. Cables are easy to install and their minimal roll memory promotes a rapid, flat and secure installation. When installing with ceramic tiles, minimum class C2 EN 12004 adhesive is recommended.
Mapeheat Cable is a free-form, twin-conductor floor heating cable designed to deliver comfortable radiant heat. Available in eleven sizes – from 14.5m to 175m – it accommodates floor areas from 1.2sq m to 28sq m. Benefits include a zero-electromagnetic field cable design and an ultra-thin cold-lead splice for easy fitting into the Mapeheat membrane.
Mapeheat Mesh – a self-adhesive, pre-wired floor heating mesh – is compatible with all subfloor types. It measures just 4.5mm thick and is offered in two different wattages, depending on the floor finish selected. Easy to roll out and cut, the system can be configured to fit any room size. Whilst it’s recommended for use with a self-levelling compound, the mesh can also be bedded directly into a polymer-modified flexible tile adhesive, if required. Mapeheat Mesh’s heating cable is attached to the self-adhesive mesh layer by three mesh bands, which help to maintain consistent spacing of the cable and allow easy removal for installation in tight spaces.
Mapeheat thermostat options include Mapeheat Thermo Basic – a seven-day programmable floor heating thermostat that’s easy to install and programme; Mapeheat Thermo Touch – a seven-day programmable touchscreen floor heating thermostat with a contemporary design, and Mapeheat Thermo Connect – a programmable, Wi-Fi-enabled floor heating thermostat compatible with smart home platforms including Amazon Alexa and Google Assistant. Each thermostat offers a range of energy-saving functions, including an economic weekly timer mode, automatic calculation of the optimum start time to reach the desired temperature, and an open window function that automatically reduces heating output when it detects a sudden drop in temperature.
For a one-stop shop, Mapei offers a complete warranty solution covering Mapeheat underfloor heating, screed, levelling compound, adhesive and grout, alongside expert technical knowledge and support.
